Copper-Aluminum Composit Product

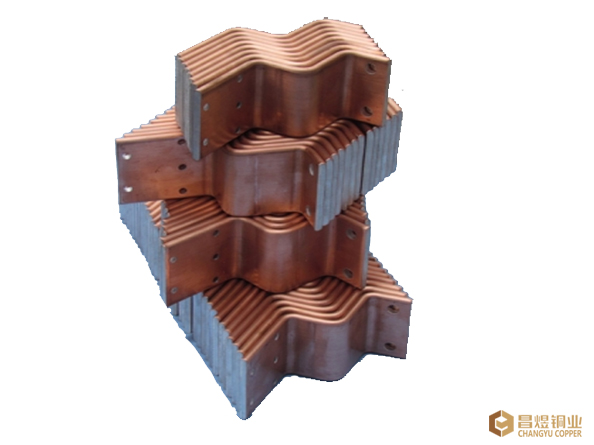

Copper Clad Aluminum Platoon

Product description:It can be used exclusively to replace copper bars, aluminum rows and it is widely used in automation, metallurgy, high and low voltage electrical appliances, construction industry and metallurgical industry. This product adopts advanced foreign bimetal composite technology, and it is a high-tech-energy-saving product with stable quality and reliable properties.
Online Chat
Specification
(Width×Thickness mm)
Cross section area
(mm²)
Ampacity
(A)



3×15
43.06
158
3×20
58.06
205
3×25
73.06
255
3×30
88.06
310
4×30
116.56
340
4×40
156.5
450
4×80
316.56
750
5×40
194.62
470
5×50
244.62
610
6×50
292.26
655
6×60
352.26
780
6×80
472.26
1045
6×100
592.26
1305
6×140
832.26
1820
8×60
466.24
890
8×80
626.24
1190
8×100
786.24
1500
8×135
1066.24
2025
8×160
1266.24
2400
8×175
1386.24
2620
8×200
1586.24
3000
10×60
578.8
1000
10×80
778.5
1330
10×100
978.5
1700
10×120
1178.5
2040

Parameters:

Length:3~6m

Density:3.63 g/cm3~3.96g/cm3

Tensile Strength:Annealing state 100-138MPA

Elongation:softenes state 15 % ;hardness state1.5 %

Weight ratio of copper:40 %

Volume ratio of copper:15%~20% Relative conductivity:65 %

Homogeneous mass-length ratio:2.377
